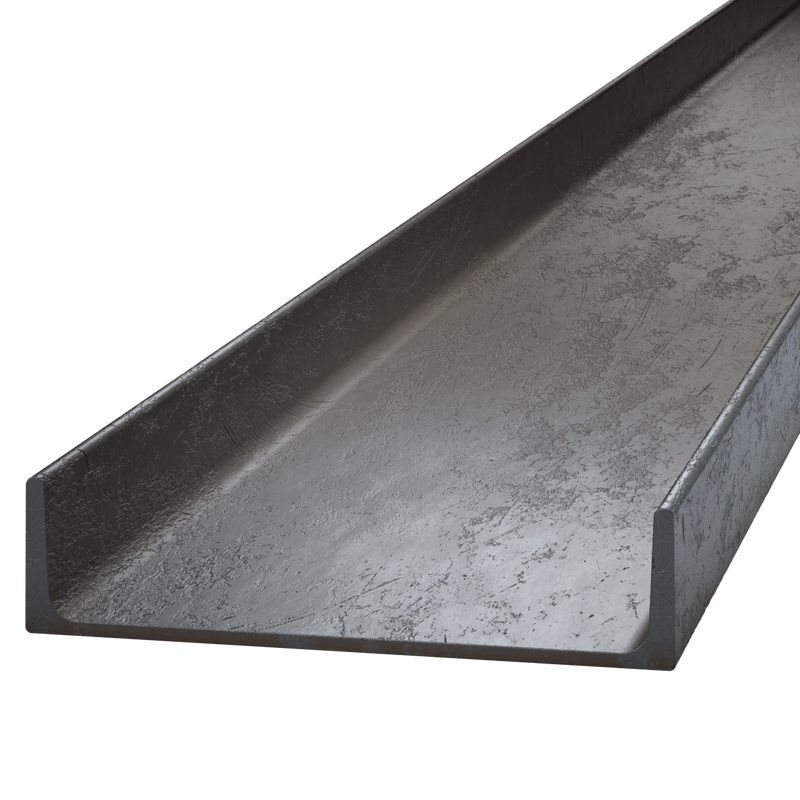

This is a Black Steel A36 12'' x 30# x 40' C-Channel.
The "#" of the channel means the Weight Per Foot in Pounds. When multiplied by the length, it will give you the total weight of the channel.
Ideal for all structural applications, general fabrication, manufacturing and repairs. Steel C Channels are widely used in industrial maintenance, agricultural implements, transportation equipment, truck beds, trailers, and more. It's C-shape configuration is ideal for added strength and rigidity over steel angles when your project's load is vertical or horizontal. C Channels easy to weld, cut, form and machine with the proper equipment and knowledge.
C-Channels are uniquely measured by the Depth of Section/Height x Flange Width x Flange Thickness x Web Thickness
This Channel can be custom cut to lengths of your choice, please click "add cuts" to customize the exact measurements you need.
| Item | C-Channel |
| Material | Black Steel |
| Material Grade | A36 |
| Section Number | 12 |
| Depth of section | 12" |
| Flange Width | 3.17" |
| Flange Thickness | .501" |
| Web Thickness | .510" |
| Length | 40' |
| Weight Per Foot | 30lbs |
| Total Weight | 1,200lbs |
| Cuttable? | Yes |
This is a Black Steel A36 12'' x 30# x 40' C-Channel.
The "#" of the channel means the Weight Per Foot in Pounds. When multiplied by the length, it will give you the total weight of the channel.
Ideal for all structural applications, general fabrication, manufacturing and repairs. Steel C Channels are widely used in industrial maintenance, agricultural implements, transportation equipment, truck beds, trailers, and more. It's C-shape configuration is ideal for added strength and rigidity over steel angles when your project's load is vertical or horizontal. C Channels easy to weld, cut, form and machine with the proper equipment and knowledge.
C-Channels are uniquely measured by the Depth of Section/Height x Flange Width x Flange Thickness x Web Thickness
This Channel can be custom cut to lengths of your choice, please click "add cuts" to customize the exact measurements you need.
| Item | C-Channel |
| Material | Black Steel |
| Material Grade | A36 |
| Section Number | 12 |
| Depth of section | 12" |
| Flange Width | 3.17" |
| Flange Thickness | .501" |
| Web Thickness | .510" |
| Length | 40' |
| Weight Per Foot | 30lbs |
| Total Weight | 1,200lbs |
| Cuttable? | Yes |
