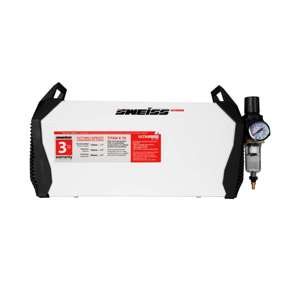

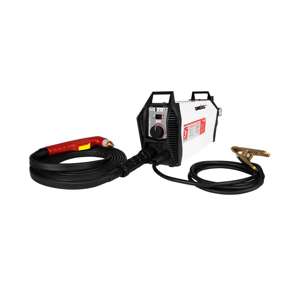

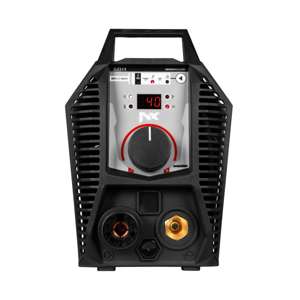

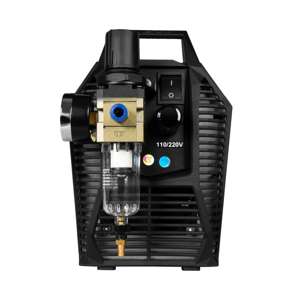

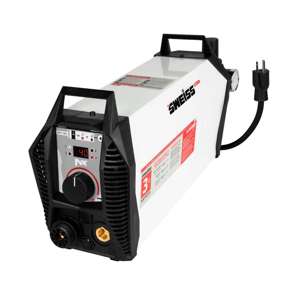

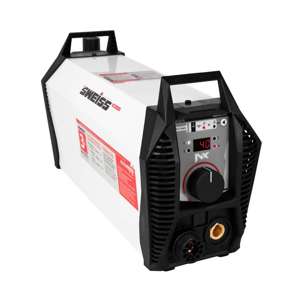

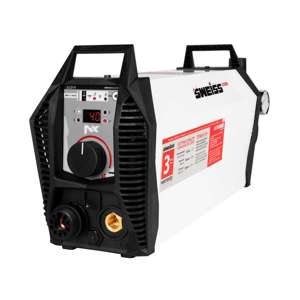

Sweiss Plasma Skycut 440NX 40Amps, 3/4''(20mm)
40Amps plasma cutter up to 20mm (3/4”). SKYCUT 440 NX SWEISS SKYCUT 440 plasma cutting equipment. Powerful and compact, ULTRA POWER Technology (95-270V). Allows cuts up to 20mm (3/4"), 40% and recommended cut (1/2")
Features
- Pilot Arc Ignition
- Air test mode
- Continuous cutting mode
- ON/OFF indicator
- Alarm indicator.
- Led screen Intermittent cutting mode.
- Torch problems
- Cutting mode selection
- Torch flame lit.
- TITAN CUT 70X torch connector.

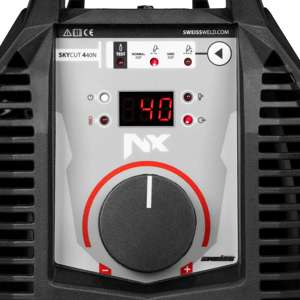

- Current adjustment knob
- Front grilles for optimized ventilation that allows more internal space for components.
- Quick connectors 35 - 50
Includes

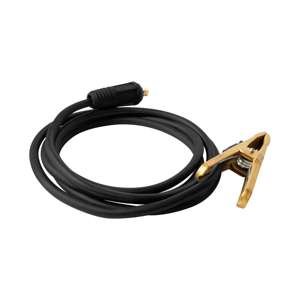

- Connector ground clamp assembly 35/50

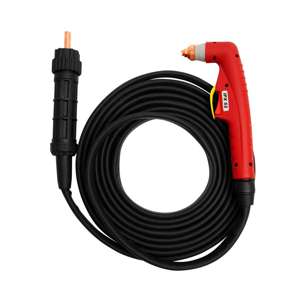

- TITAN CUT 70X Plasma Torch (P1-440)
TECHNOLOGIES
- ULTRA POWER: Unique SWEISS technology, which allows electrical connection at 95 - 270V, saving 40% of electrical energy, allowing it to be connected to generators that are 30% less powerful.
| Amperage | 110/220V) 20-30Amps / 20-40ª |
| Current Type | DC |
| Voltage | No-load 320V |
| Input Voltage | 110/220V (1Ph) |
| Frequency | 50/60 Hz |
| Max Consumption | 32.6Amps(110V) / 22.8(220V) |
| Ignition | PILOT ARC |
| Weight | 14.1lbs |
| Measurements | 17.44'' x 6.06'' x 9.56'' |
| Insulation | IP/IP23S/F |
| Connection type | 1/2 Ph |
| Torch Model | TITAN CUT 70 X Torch (P1-440) |
| Front/Back Material | Plastic |
| Housing Material | Steel |
| Pressure range | 65 - 90 PSI |
| Flow range | 6.5 - 8.5 CFM |
| Recommended generator power | 13 Kw |
| Extension | (220V) Up to 150m, #10 (minimum) AWG gauge |
| CE regulations | EN-60974-1, EN-60974-10 |
