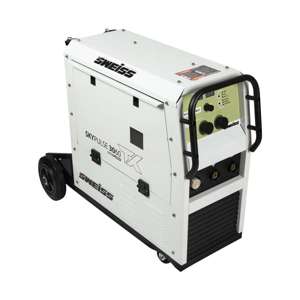

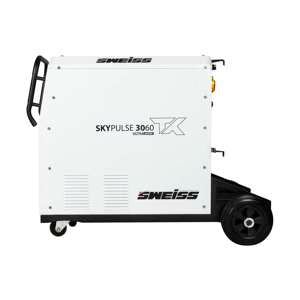

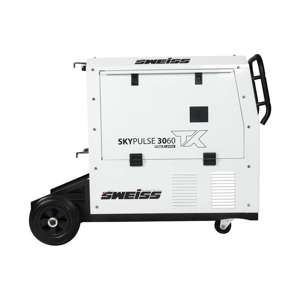

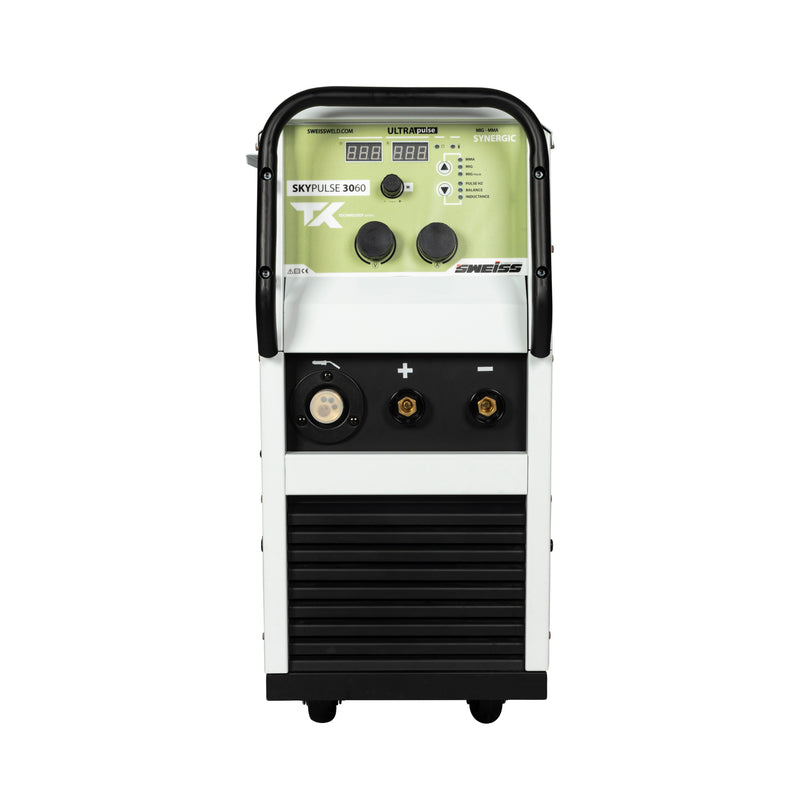

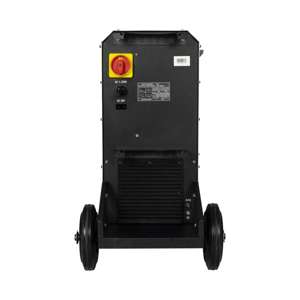

SKYPULSE 3060 TX 300Amps multiprocessor welder
Sweiss brand SKYPULSE 3060 TX inverter welding equipment for industrial use has 300 amps ULTRA PULSE technology, and single-phase 220V connection.; Allows welding of electrodes up to 5/32 at 60%, 1/8 at 100% (6013 only) and MIG with .035 wire at 100%.
Features
- Compact size and robust construction, ideal for medium-sized industry, with MIG needs of up to 300 amps, recommended for 0.9 and 1.0mm wire.
- It allows welding all types of materials in MIG, with or without gas and with type 6013 electrodes.
Includes

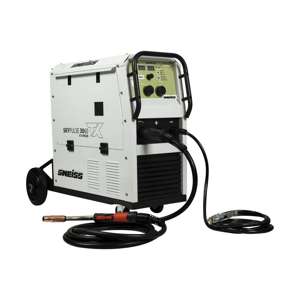

- Electrode holder clamp set, with 3m cable
- Ground clamp assembly, with 2m cable.
Technology
- INDUCTANCY: ELECTRONICALLY adjustable inductance.

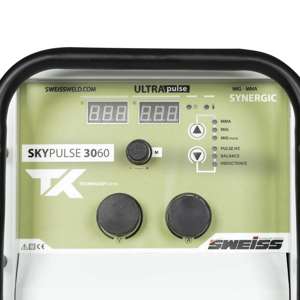

- DIGITAL: Digital panel with easy regulation
- LOW CONSUMPTION: Low consumption INVERTER technology with 30% savings.
- ULTRA PULSE: New pulsed arc MIG technology, for aluminum, carbon steel and stainless steel.
| Amperage | 30-300 AMPS |
| Duty cycle | At 40° C: 60% |

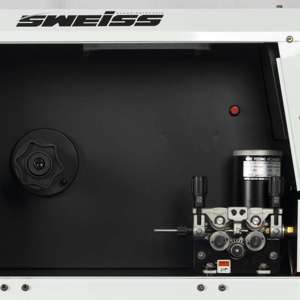

| Drag | 4 Rollers |
| Reel | 15 Kg (Compact) |
| No-load voltage | 55V |
| Max consumption | 40 Amps |
| IP | IP23S |
| Insulation | F |
| Wires | 0.6- 1.2 mm |

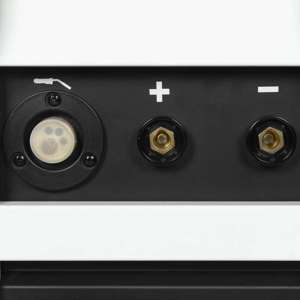

| Quick connectors (DINSE) | 35/50 |
| Regulations | CE, EN-60974-1, EN-60974-10 |
| T. Electrodes | 6013, 7018, 6011, SS... |
| Screen | Digital screen |
| Process | MMA and MIG |
| Ventilation | Tunnel ventilation. |
